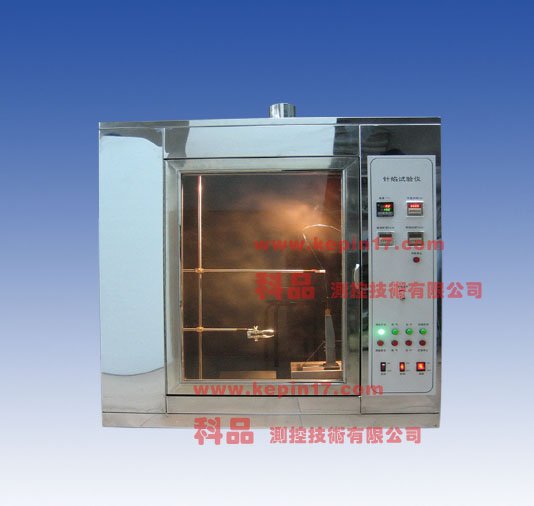

Needle flame tester for IEC 60695 1 and2
Needle flame test apparatus for the detection of fire-retardant properties of electronic components, electrical parts, mechanical parts, injection molded parts and other electrical products. This machine is an internal analog products under fault conditions produced a small flame, using a technology assessment of fire risk.
● Operating voltage : AC220V, 50Hz;
● Shi Yan Time : Adjustable (0 ~ 999.9S);
● holding burning time : 0 ~ 999.9S, automatic recording, random pause ;
● Flame height : 12 ± 1mm adjustable ;
● flame temperature measurement: from 100 ℃ ± 5 ℃ 700 ℃ ± 3 ℃ rise time of 23.5S ± 1S, temperature display :0-1000 ℃ ± 0.5 ℃;
● Air Source Type: butane ( user-owned ) ;
● Shi Yan angle : 0 ~ 45 ° adjustable ;
● needle height : more than 35mm ( internal diameter ф0.5, outside diameter ф0.9);
● Adjustable volume size ( meter ) ;
● Dimensions : 1100X1150X550mm ( internal volume greater than 0.5 cubic meters , can be customized 0.75 cubic meters, a cube ) inside walls of black , light intensity is less than 20lx, cabinet from 1.2 thick 304 stainless steel combustion chamber with the control box in the same box ;
● Thermocouple : φ0.5 armored nickel-chromium / nickel aluminum wire , K indexing , British imports , the insulation ;
● Receiving plate with one of five silk paper , pine board one ;
The main instrument accessories origin or brand :
1 Relay : Omron .
2 Digital Meter : Using Korea autonics ( Autonics ) display .
3 breaker : Schneider
4 buttons, switches , lights : Shanghai .
5 Case : from 1.2 thick 304 stainless steel, the surface paint .
