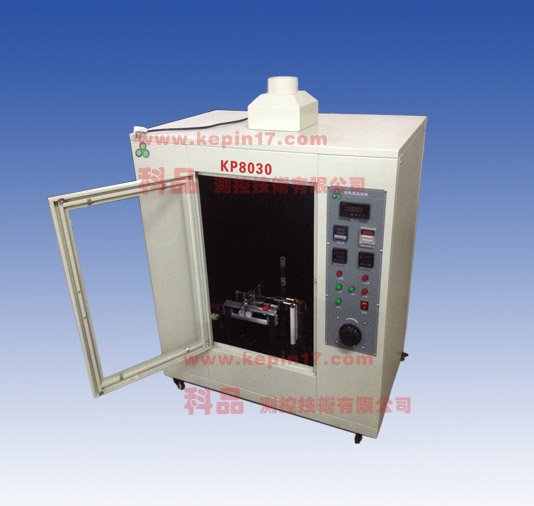

Glow Wire Tester for IEC60695-2
Glow wire tester simulates the flame inside the device is easy to spread insulation or other solid parts of combustible materials may be due to sky glow wire ignition or burning components. Under certain conditions, such as the fault current flows through the wire, the overload element and a lower bad contact, the temperature reaches a certain component parts near to the ignition test.
1 test gas source: the use of bottled butane gas, propane gas can be used
2 needle burner: stainless steel
3 burner needle: inside diameter of ¢ 0.5 ± 0.1, external diameter not exceeding
4 Glow Wire: 4mm ± 0.04mm Ni80/Cr20
5 Temperature error: 500 ~ 700 ℃ ± 2 ℃; 750 ~ 1000 ℃ ± 5 ℃
6 thermocouple: side temperature using 0.5 ~ ~ 0.55mm nickel-chrome armor (K-type) thermocouple imports
7 test for glow-wire test pressure;. Glow-wire samples 0.8N ~ 1.2N force is applied
8 indentation depth: limit the indentation depth of at least 7mm
9 test movement speed :10-25mm / s
10. The application time 0-99 99 range is adjustable.
11 volume:. 1120 * 520 * 1250mm
