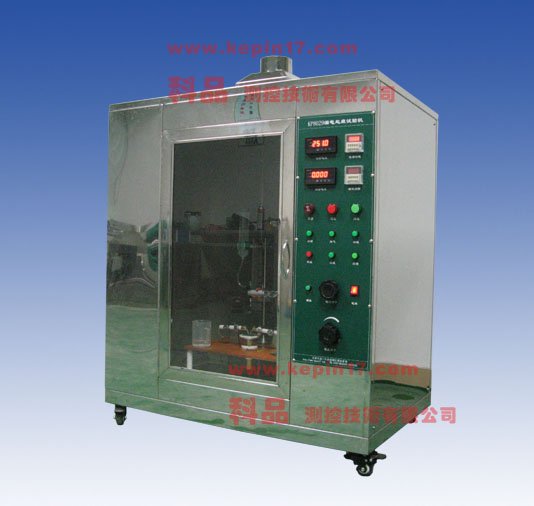

Tracking index tester for IEC60112
Product Application: The tester can measure the voltage up to 600V when solid electrical insulating materials in the electric field on the surface exposed to relatively resistant to tracking performance when water containing impurities.
An electrode: cross-sectional area of a rectangular 2mm × 5mm two platinum electrodes. End edge of 30 ° slope.
Second, the surface force: 1.0 ± 0.05N
Third, the test voltage voltage: 100 ~ 600V
Fourth, the maximum test current: 3A
Five, two electrode distance: 4.0mm
Six, dropping device: drip interval can be set arbitrarily
Seven chamber volume: 0.5M3, deep x width x height: 60x 95x 90cm
Eight Dimensions: width x depth x height: 61x 120x 105cm
