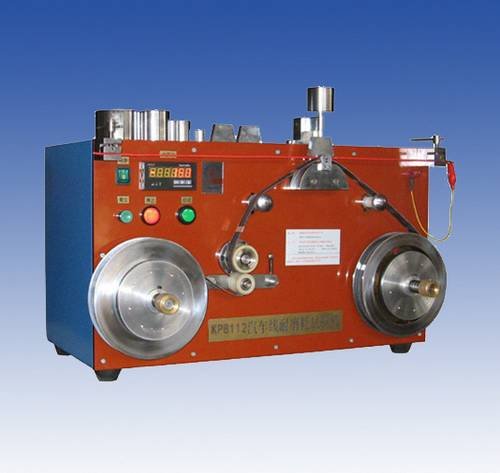

KP8112 automotive thin wire and cable drag ground resistance tester
Product introduction:
This machine is suitable for the detection of car with PVC insulated cable insulation resistant strength test, is the production of automobile wires, a necessary testing instrument.
Standard: GB/T 25085-2010, ISO6722:2006
Technical parameters:
• applicable wire diameter: 0 ~ 15 mm
Abrasive belt, count the range: 0 ~ 5000 mm
The abrasive belt speed: 1500 mm/min
• support abrasive belt round: ￠7 mm
• test voltage: 10 v
• Fa code: 250 g, 450 g, 750 g, 1350 g, 1900 g each one
Farmar support: 1/32, 3/16, 1/16 r r r each one
• abrasive belt and sample Angle: 300 (adjustable)
• conductive article wide: 10 mm
: the distance between the conductive article 150 mm specifications:
• exterior size: 700 mm * 400 mm * 500 mm
• power supply: AC 220 v 50/60 hz 1 a
