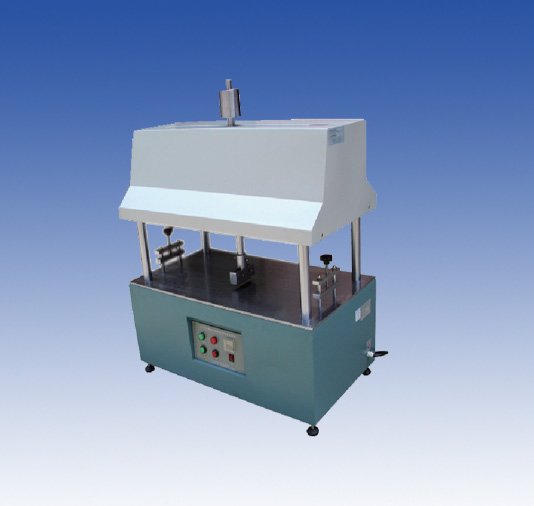

KP8114 cable jacket scratch-resistant testing machine
This machine meet GBT2951.28 wire and cable mechanical physics
Performance test methods - coat extrusion blow grind test; Apply to electric
Cable diameter of 30 mm plastic coat of scraping the ground resistance test.
1, the Angle head of radius of curvature of r0.125 / r0.3 mm
2, a head trip: 600 mm
3, scraping the ground speed: 15 ~ 30 cm/s is adjustable
4, shaving, grinding force: 65, 106, 155, 210, 270, 340, 420, 500, 550 n
