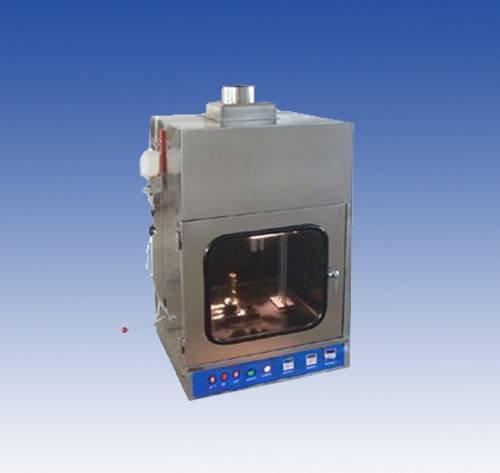

KP8110 alcohol burner combustion testing machine
Summary:
MT 181-181 "the coal mine safety inspection specifications with plastic tubing", 558.1 MT - 2005 "the coal mine with plastic tubing polyethylene pipes, section 1, 914-2008 - MT coal used flame-retardant fabric core conveyor belt, MT113, MT164, MT165, MT383-1995, MT147, MT141, MT157, MT191, MT449, MT450, MTT98 standard and GB/T3685-1996 such as the conveyor belt alcohol burner combustion performance specifications and test methods, GB16413-1996" the coal mine with fiberglass products safety inspection specification"
Main application: suitable for flame retardant conveyor belt, polymer products used in mine, coal mine in plastic tube, and the coal mine with a rubber hose, hydraulic support hose and hose, with wire rope traction belt, coal mine with coal mine steel cord conveyor belt, coal mine with rubber cushion belt conveyor roller, such as flame retardant performance measurement, is a coal mine with non-metallic products (coal mine with ram, the ram coating cloth, conveyor belt, pipe material, plastic mesh, cable, glass fiber reinforced plastic products, instruments and meters nonmetal crust and coal mine product nonmetallic material fittings etc) flame retardant performance testing equipment necessary.
Instrument characteristics
1, using precision hanging alcohol burner
2, the combustion time automatic timing
3, open flame and burning time automatic timing
4, the flame height can be adjusted
Instrument of
This device consists of alcohol torch burners, burner base, sample frame, fuel, combustion chamber and exhaust system of six parts
Main technical parameters:
1, burning time: 0 ~ 999.9 seconds in any setting, accuracy of + / - 0.01 seconds, the standard adopted for 30 seconds
2, open flame and burning time timer: 0 ~ 999.9 seconds, accuracy: + / - 0.01 seconds
3, the width is 25 mm plastic pipe annular specimen or conveyor belt size: length 150 mm x 25 mm wide
4, work power source: AC220v; 50 hz; 50 w
5, combustion chamber size: 660 mm x 660 mm x 1000 mm (not steel rust)
6, fuel: 5% (V/V) methanol and 95% (V/V) ethanol mixture
7, the flame temperature: 960 + 60 ℃;
8, the flame height: 150 mm ~ 180 mm;
9, the fuel consumption: 2.55 + / - 0.15 mL/min.
10, weight: ɡ about 60 k
11, do: alcohol lamp burning a jig
