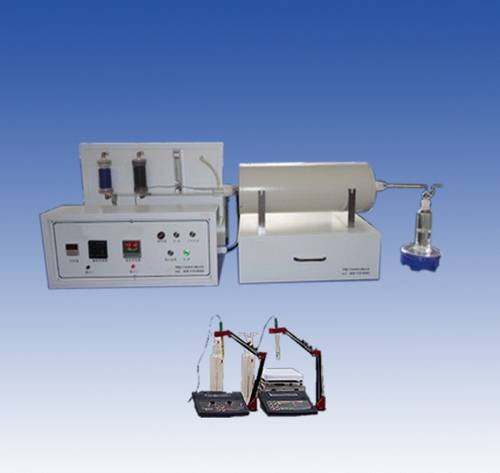

KP8107 halogen acid gas release measurement device
Product introduction:
Halogen acid gas release measurement device, according to the test method of GB/T 17650 IEC 60754-1 and IEC 60754-2, design and manufacture of test wire and cable release of halogen gases in combustion process, pH value (hydrogen ion content, conductivity, etc.
Standard:
GB/T 17650.1 ~ 2-1998
IEC 60754-1 ~ 2-1994
Technical parameters:
Activated carbon (air filter) : through the filter air source
Silica gel (dry air) : the dry air supply device
Meter: 0.1 ~ 1 l/min is adjustable, air traffic control device
Type K thermocouple: high temperature resistant stainless thermocouple stainless 0 ~ 1300 ℃
Quartz tube: 40 * 800 ￠
Magnetic stirrer, the agitator of combustion gas mixing in distilled water;
PH meter: a device used to measure the pH of acidity, magnetic)
Conductance meter: the instruments for the measurement of electrical conductivity in combustion gas, magnetic)
7 "color touch screen and PLC and PID calculation module control furnace temperature automatically
Schema transformation can meet two test methods
Heating furnace: ￠220 * 600, 43 * 550 ￠effective space, 4 kw power
Washing bottle: 2 straight washing bottle of 500 ml, 2 l, 1 cup
Specifications:
Installation size: 2300 mm (W) x600 (D)
Power supply: AC 220 v, 50/60 hz, 21 a
Reagents, air by advertisers
