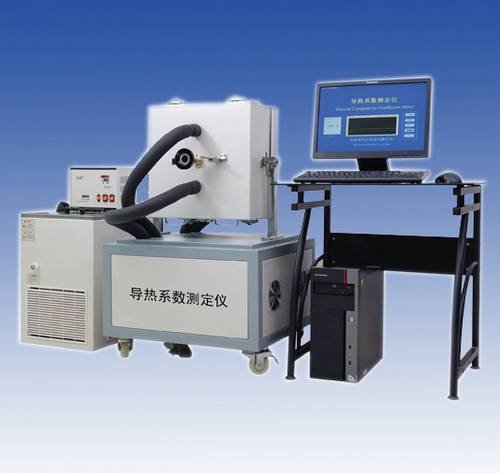

KP8104 double plate thermal conductivity apparatus
1, scope of application:
Applies: clay, sand dry specimen coefficient of thermal conductivity, thermal resistance of the sample should be greater than 0.1 m2. The K/W.
Using heat flow meter test of clay, sand, etc. The coefficient of thermal conductivity and thermal resistance method, even the computer to realize automatic detection and generate test report. Instrument used in the sample side join stable heat surface temperature, heat through the specimen is passed to the grim (room temperature), the measurement of transmission of heat flow to calculate the coefficient of thermal conductivity and thermal resistance. Designed with rock and soil sample tube and heat capacity test device, can make the soil such as clay, sand and specific heat capacity and thermal analysis. Electronic circuits, computer use special procedures for measurement and control. Pt100 temperature sensor, import electronic devices with high precision and high precision circuit, data acquisition card and computer measurement and control. Automatic data acquisition, data processing, report printing and data storage.
Second, conform to the standard:
Conform to GB/T10295-2008 "steady state thermal resistance and thermal insulation materials on properties of measuring heat flow meter law and ISO/DIS8301 the adiabatic - determination of the steady state thermal resistance and the related features - heat flow meter apparatus.
Third, main technical parameters
1, the coefficient of thermal conductivity range: 0.015-400 - w/mk, accuracy better than 5%.
(special geotechnical round sample with test tube, Ф 90 mm)
2, hot surface temperature: room temperature is 99.99 ℃, the high number of readings show table temperature, magnitude 0.2 accuracy and resolution of 0.01 ℃.
3, cold face temperature: room temperature, the high number of degrees show table measuring temperature, magnitude 0.2 accuracy and resolution of 0.01 ℃.
4, hot surface temperature: room temperature is 99.99 ℃, the high number of degrees of program-controlled digital readout temperature measurement, the accuracy of 0.2 on the Richter scale, resolution of 0.01 ℃, flat panel heater, bidirectional thyristor control.
5, using forced air cooling is grim.
6, using the computer automatic testing.
7, using WPY heat flux meter, heat flow parameters of 23.26 w/m2. The mV.
8, using organic glass wind cap, can be directly observed experimental process.
9, hot and cold plate heat transfer area: 150 * 150 (mm).
10, hot and cold plate spacing can be adjusted: (0-160 mm
