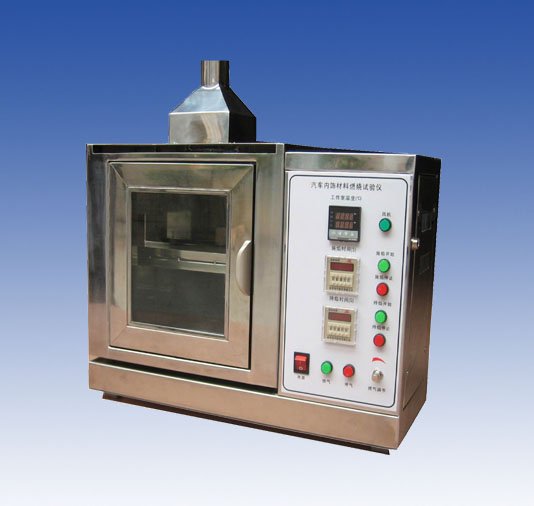

KP8037 Car interior materials burning machine
This machine meet GB8410, FMVSS571.302, DIN7520 combustion characteristic of automobile interior trim materials. Clip sample horizontally on the u-shaped bracket, with specified high flame combustion box in the free end of the sample after 15 s, determine whether the sample on the flame extinguished, and sample combustion of distance and the time required for the distance. Interior materials including led automotive interior parts used in a single material or laminated composites, such as seat cushion, seat, seat cover, seat belt, headrest and armrest, activity type folding roof, all decorative line board, instrument panel, glove box, indoor goods shelf board, or rear window bedplate, curtains, floor coverings... ..
A, burning cases:
1, the structure of the mirror surface stainless steel plate, steel plate thickness of 1.2 mm
2, the size of the combustion chamber: x width x height: 385 x 360 x 204 mm
3, there are 10 at the bottom of the hole diameter of 19 mm, there are 13 mm wide near the walls near the top of ventilation slots.
4, test support: the two u-shaped corrosion of the metal steel plate, the size is 361 x100mm length x width
Second, the control cabinet:
1, the burning time: 0 ~ 99.99 / S/M/H set arbitrary
2, stop burning time, burning time: 0 ~ 99.99 / S/M/H set arbitrary
Three, burning lamp:
1, nozzle inside diameter: 9.5 mm
2, air, gas () by advertisers
3, the flame height: 38 mm
4, metal comb: length: 110 mm, not 25 mm within 7 ~ 8 smooth crenate
Five, the steel rule: length 400 mm, the accuracy of 1.0 mm
