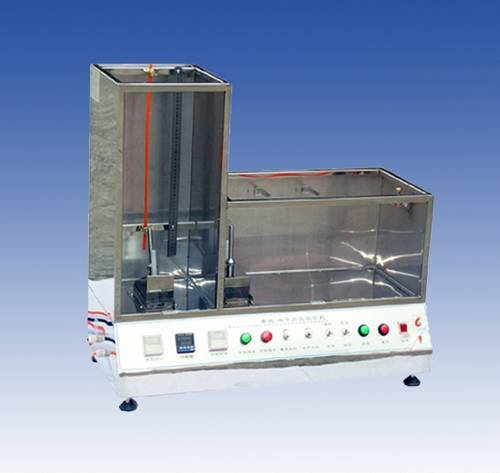

KP8034 vertical horizontal burning test machine
The machine is suitable for all kinds of wire and cable insulation coating material, printed circuit board, IC insulation resistance to combustion of organic materials such as test. Test, the specimen for the flame at the top, burning for 15 seconds, put out in 15 seconds, repeat 5 times after the test coupons were burning, burning can be set, the put out time and repeat times, and can automatic operation. Apply to UL1581. UL13. UL444. UL1655 VW of FT - 1-1 and CSA.
A, vertical combustion box: according to UL1581 standard size production, internal size is 305 * 355 * 355 mm.
2, level burning case: according to UL1581 standard size production, internal size is 305 * 355 * 355 mm.
3, vertical spark nozzle: the nozzle Angle is 20 degrees, with gas control valve.
Four, level spark nozzle: the nozzle Angle is 90 degrees, with gas control valve.
Five, the vertical or horizontal nozzle selection mode.
Six, select manual/automatic mode.
Seven, when reach the preset data, the machine will automatically stop the test.
Eight, the fuel gas. Methane () by advertisers
Nine, test length: 300 mm (level), 457 mm
