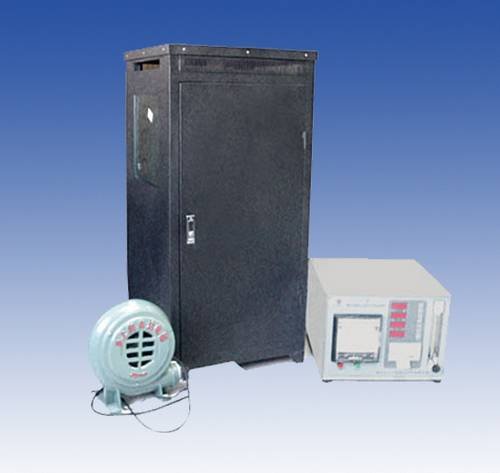

KP8040 Small sample test furnace steel structure fireproofing coatings
Summary: according to GB/T9978-1999 technical requirements design and manufacture a full compliance with the requirements of national standard test equipment, steel structure fireproofing coating samples test furnace design reasonable structure, convenient operation and maintenance, high degree of automation, temperature error is less than the national standard.
Technical indicators:
1. Ambient temperature: room temperature to 40 ° C
2. The relative humidity: 75% or less
3. The work environment: indoor without forced draft 4. Steel structure fireproofing coating samples test furnace adopts intelligent control system
5. Level up: 4 h at room temperature: ~ 1133 ° C + 100 ° C for 6. Combustion gas source: natural gas, coal gas
7. The gas flow: > 16 l/min
8. Temperature alarm: back 2 ° C to 220 ° C +
9. The steel structure fireproofing coating samples test furnace adopts digital display temperature, furnace inside of thermocouple to platinum rhodium platinum
10. Test equipment appearance size: 700 * 650 * 650
Technical parameters:
1. The power supply voltage and power: 50 nz 300 w ac 220 v + / - 10%
2. Source: natural gas, coal gas
3. The gas flow: > 16 l/min
4. The specimen: beams, (factory)
5. Automatic control of time a temperature rising curve and temperature records
6. Specimen back fire temperature of 140 ° C temperature and internal temperature of 180 ° C + + environment temperature automatic alarm
