KP8012 foam vertical/horizontal burning test machine
Applicable to evaluation of foam (foam rubber) relative small sample combustion performance. Meet GB8332, GB8333, ISO3582,
UL94 HBF, HF - 1, HF - 2 test standard.

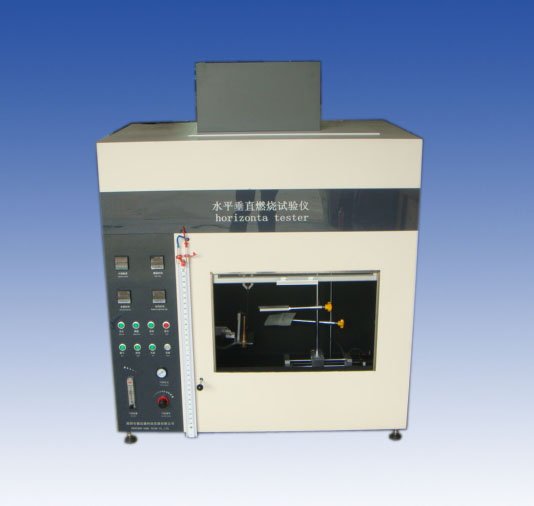

Test box size: length 600 mm, width 300 mm, 760 mm as shown in figure 1
Timer: 0 ~ 99.99 S set arbitrary.
Combustion gas: gas
Horizontal burning test, as shown in figure 2
The burner: Bunsen burner. Lamp with a wing top nozzle, the height of 400 mm
Cone Angle 60 °, nozzle inside 48 mm long and 3.0 mm wide
Flame height: blue inner flame 38 mm, away from the wing tip measured temperature 1000 ℃
Sample holder, Φ 0.8 mm steel wire, mesh each side 6.4 mm, net
Length 215 mm, width 75 mm, 13 mm high
Vertical burning test, as shown in figure 3
The burner: Bunsen burner. The cylinder inner diameter 9.5 mm. With lead straight into 15 °
Flame height: blue inner flame 30 mm, and the top of the inner flame temperature is 960 ℃
Sample bracket: stainless steel, height 305 mm, 64 mm wide, deep 57 mm.
There were three nails fixed sample
With temperature measuring device
