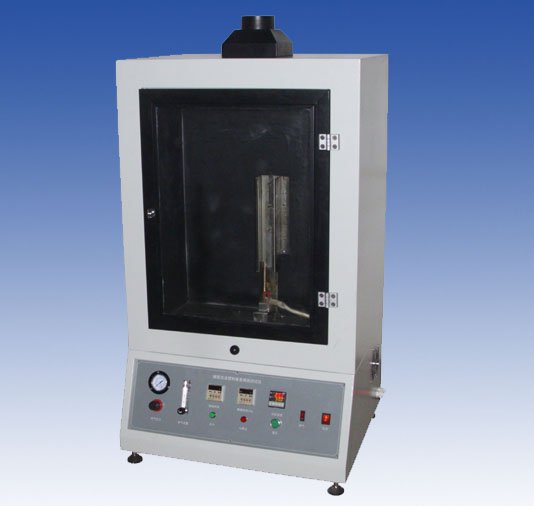

KP8012A rigid foam vertical/horizontal burning test machine
Summary:
The machine is suitable for laboratory evaluation under the condition of rigid foam plastic or foam rubber vertical combustion performance;
Under the condition of the machine is suitable for laboratory evaluation according to ISO 845:1985 determination of plastic foam density is less than 250 kg/m3 levels under small sample in the small flame combustion performance.
Test standard:
GB/T8333-2008 hard foam plastic combustion performance test method of vertical burning method; (equivalent to the American association of material and test standard
GB/T8332-2008 foam combustion performance test method of horizontal combustion method. (equivalent to international standards ISO9772 foam plastic
- a small sample in the small flame level under the condition of combustion performance measurement)
Main specifications:
The Bunsen burner combustion tube hole: 9.5 + / - 0.5 mm
Bunsen burner combustion tube length: 100 + / - 10 mm
Bunsen burner and the vertical Angle: 0 ° / 15 °
Bunsen burner wing top: opening internal length 48 + / - 1 mm, width of 1.3 + / - 0.05 mm
Vertical burning frame tube length: 305 mm
Vertical burning test specimen holder: 191 x 13 x 6 mm plate, screw diameter of 2.5 mm and 38 mm length
Vertical burning weighing dish: aluminium, a diameter of 50 mm
Weighing plate location: weighing from burning at the bottom of the frame at the bottom of the barrel 76 mm
