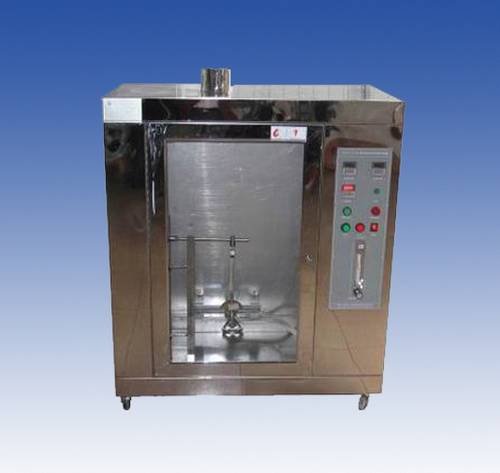

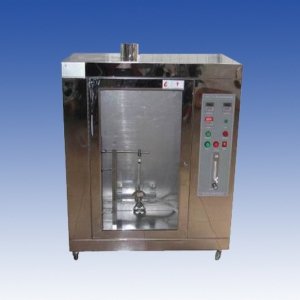

KP8010 plastic and plastic parts \ vertical burning test
The prescribed test box, placed on the horizontal and vertical direction of the specimen with a small flame ignition source light, by measuring the linear burn
Speed (level) or flaming and flameless combustion time (such as vertical method) to evaluate sample combustion performance. In line with the GB / 2408,
GB13488, ISO1210, V - 1-0 V of UL94 v-2, ASTM D635, D4804, 3801, IEC707 standards.
The test chamber volume: acuity 0.5 M3
The burner: as a Bunsen burner. Tube length 100 mm, inner diameter of 9.5 mm
Metal mesh: for the side length of 125 mm square, mesh plate with steel wire woven aperture 0.7 0.45 mm in diameter.
Timer: 0 ~ 99.99 S set arbitrary.
Combustion gas: gas
Horizontal burning test:
According to UL94 HB of 7.1 ~ 7.7 and GB/T2408 FH FH - 1-2, FH - 3 and CSA C22.2 no
NO. 0.17 standard design,
Burning Angle: 90 °
The flame height: 20 mm
Seven, vertical burning test:
According to the UL94 V - 1-0, V, V - 2 and GB/T2408 FV 0,
FV - 1, FV - 2 standard design
Burning Angle: 90 °
The flame height: 20 mm
