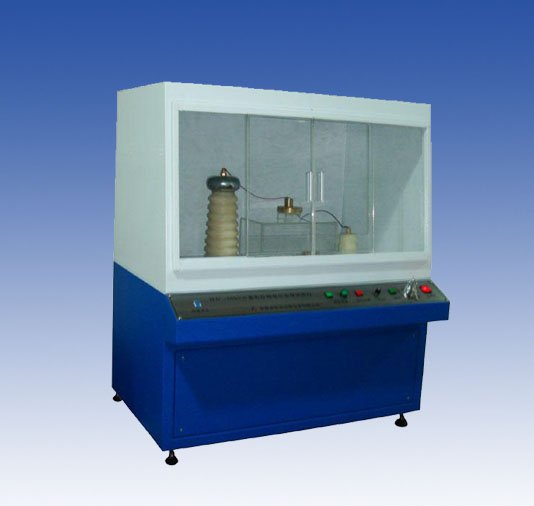

KP8009 solid electrical insulation dielectric strength tester
Applies to solid insulating materials such as plastics, films, mica, ceramic, resin, glass, insulating varnish and other dielectric breakdown strength under power frequency voltage and voltage resistance test of time.
A, accord with a standard: GB1408.1, GB/T1695, IEC60243
GB1408.1, IEC60243-1 the solid insulation dielectric strength testing method - test under power frequency ", GB/T1695-2005 "vulcanized rubber breakdown voltage and the power frequency withstand voltage test method of GB/T3333 GB12656 and ASTM D149 test standard.
Second, the parameters
1. The voltage range: 0 ~ 50 kv;
2, after the trip voltage regulator automatic back to zero;
3, zero switching, with automatic, manual lifting voltage;
4, leakage protector, reliable protection of personal safety;
5, over-current protection, threshold and other security protection function;
6, voltage, current, according to the measurement accuracy + / - 2%, the breakdown voltage to maintain;
7, test electrode, the electrode diameter is 25 mm, 25 mm high; The electrode diameter is 25 mm, 25 mm high. (electrode, stainless steel);
8, high voltage transformer rated capacity: 10 kva;
9, the rated input/output voltage: 220 v / 50 kv;
10, input/output current rating: A / 0.09 A;
11, the control system: adopting Siemens PLC + Taiwan wei lun touch screen control, control precision, simple operation, fully humanized design, automatic computing electrical strength and generate the report test is over, panel thermal printer can print test results;
Pressure rise speed five file optional: 50 v, 5 v, 100 v, 500 v, 1000, 500 v;
12, with a convenient disassembling oil bath (material: stainless steel: it can according to customer's requirements, also can not oil bath);
13, instrument parts, composed of electric contact type self-coupling voltage regulator, automatic control box, protective resistance, electrode box, oil bath;
14, the case material: high quality SUS304 stainless steel;
15, shape size: 1.4 m long, 1.1 meters wide, 1.7 meters high
16, weight: 240 kg
