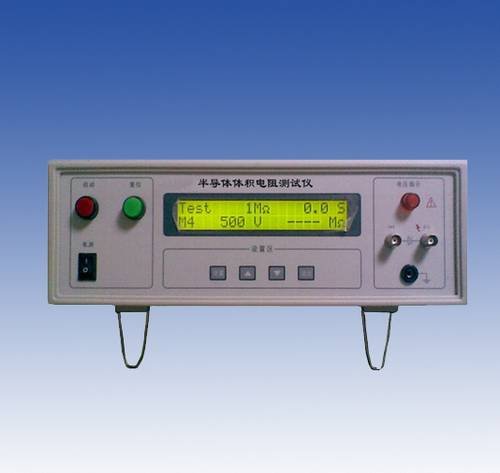

KP8098 semiconductor bulk resistance tester
Suitable for measuring the wire and cable with rubber and plastic volume resistivity of conductive materials, in line with the GB/T3048.3 the semi conductive
Rubber and plastic material volume resistivity test method
Dc power supply: 0 ~ 5000 v voltage is adjustable
Current meter: 0 to 20 ma
Current electrode: 20 mm x 70 mm
Voltage electrode: Ф 1.0 mm
Ω resistance measuring range: 0 ~ 108
Potential electrode pressure along the specimen width: 65 n/M
Insulation board size: 80 mm x 180 mm
