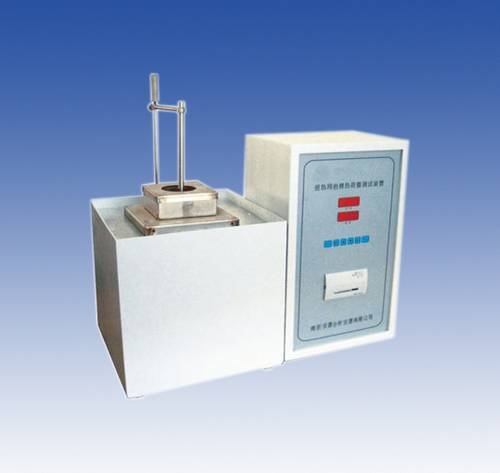

KP8096 with rock wool insulation thermal load testing device
1. Scope of application:
suitable for rock wool, mineral wool and glass cotton products. Under fixed load, to a certain heating heating rate, sample requirements on the thickness of the shrinkage rate, through calculation, using interpolation method to find the thermal shrinkage temperature under load.
2. Standard:
Comply with GB/T11835 standards.
3. The technical parameters
Heat load test apparatus consists of a heating furnace, heating container and the temperature sensor.
Temperature: room temperature ~ 40 ℃ relative humidity: 75% or less
working voltage: + / - 10 v, 50 hz ac 220 v
heating power: 1000 w
Zoom range: room temperature to 900 ℃
heating rate of 5 ℃ / min plus or minus 0.3 ℃ and 3 ℃ / min plus or minus 0.2 ℃ can be set
Instrument using single chip computer, multipoint temperature programmed.
heat source USES the hot plate, safe and reliable, long service life
Instruments equipped with surface format printers, print test results in time.
