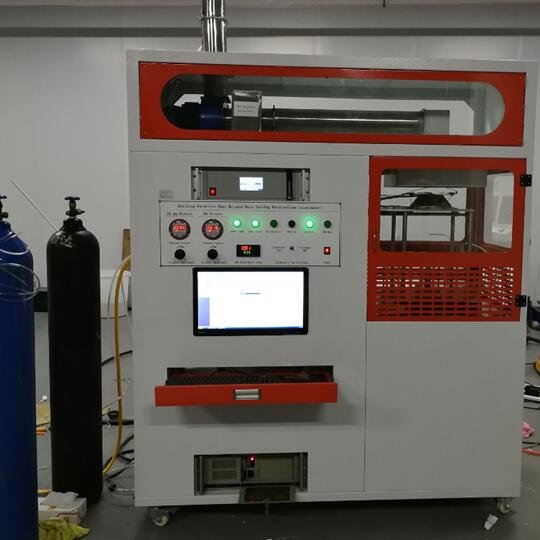

KP8097 cone calorimeter instrument

KP8097 cone calorimeter instrument

The full product name
Cone Calorimeter Heat Release Test Machine

standard
• ISO 5660: reaction to fire tests - heat release rate, smoke production rate and quality loss rate
• ASTM E 1354: materials, heat and visible smoke release rate of standard test method
• BS 476 Pt. 15: building materials and building structure testing: - test method of product heat release rate
GB/T 16172-2007
Characteristics of the
• integrated design, including analysis of stents
The computer control, touch screen the whole test process
Convenient, spark ignition, automatically measuring the burning time
• automatic split gate can automatically open will be transmitted radiation to sample
• laser calibration
The glass door of the enclosure protection device is convenient for the user to open, close, observe the testing process
• fuel gas analyzer can accurately measure the O2, CO, CO2 concentration, the accuracy is 0.02%
• by gas sampling port, hot filter, heated line measurement of harmful gases
MFC (mass flow controller) is used to measure all the mass of the gas flow, the precision is higher
Equipped with portable water cooling system, using heat flow time without sprinkler systems or conduit (ISO 5660)
• quality is measured by the weighing sensor can improve the precision loss rate
• touch-screen tablet computer control DAQ (data acquisition) program
• containing methane mass flow control system
• bi-directional sensor to automatically import compressed gas purification system
• temperature controller can be divided into five steps to control the heat source of conical heater (optional)
, users can directly set with different from the existing test methods specified in the cone calorimeter target temperature, the heat on the lifting speed and heating duration
The whole process, using the touch screen can be easily controlled
, by the installation of the temperature rise test control program of LCD touch screen control
specifications
