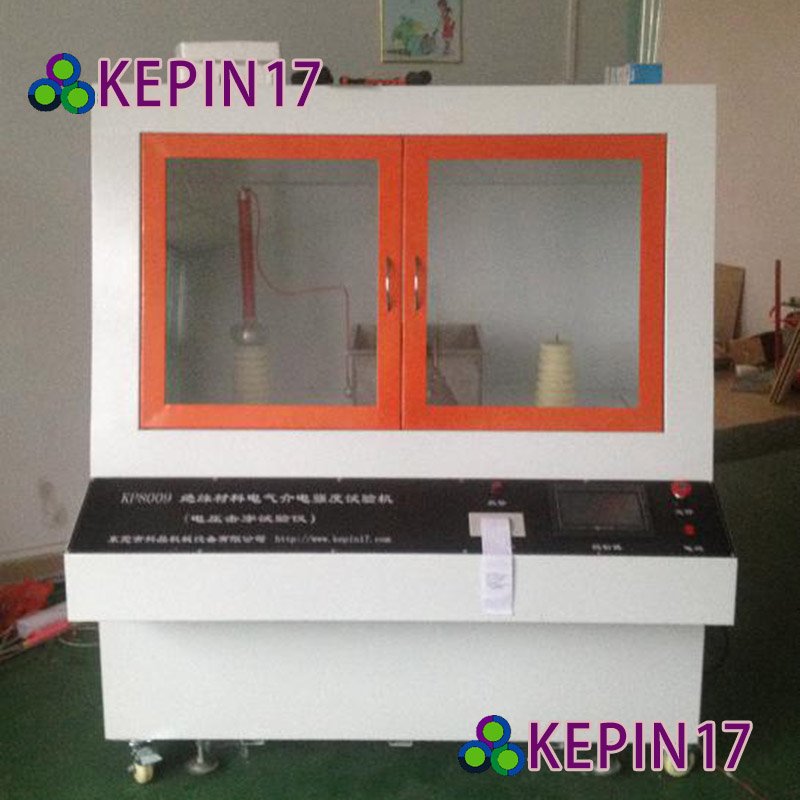

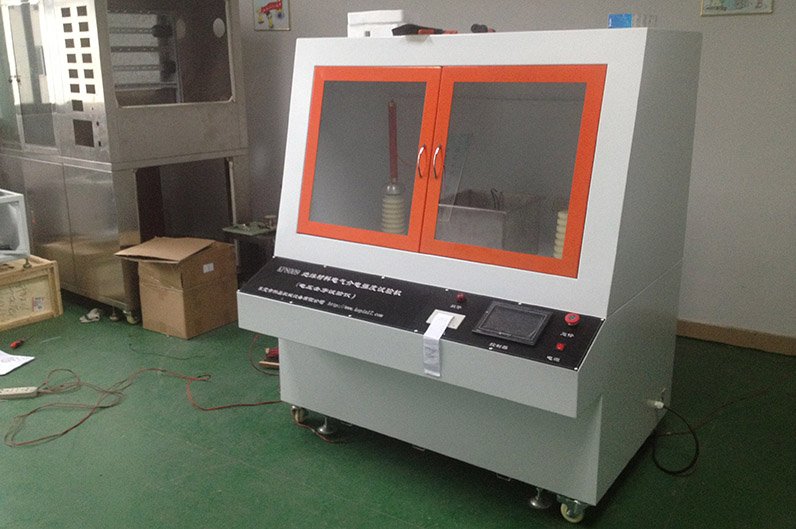

KP8009 Electric Strength Voltage Breakdown Tester
KP8009 Voltage Breakdown Tester picture , Electric Strength Test Machines price , Voltage Breakdown Tester Instruments
I) Introduction
It is suitable for testing the breakdown strength and withstand voltage time of power dielectric voltage for solid insulating materials such as plastic, film, resin, mica, ceramic, glass, insulating varnish and other media.
Meet the standard: ASTM D149 And IEC60243, the corresponding test standard can be downloaded free of charge, please click the corresponding title below to go to the test standard download page.
IEC 60243-1:2013 Electric strength of insulating materials - Test methods - Part 1: Tests at power frequencies
IEC 60243-2:2013 Electric strength of insulating materials - Test methods - Part 2: Additional requirements for tests using direct voltage
IEC 60243-3:2013 Electric strength of insulating materials - Test methods - Part 3: Additional requirements for 1,2/50 μs impulse tests
ASTM D149 - 09(2013) Standard Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulating Materials at Commercial Power Frequencies
II) Test machine parameters
2.1, test voltage range is optional: 0 ~ 30KV; 0 ~ 50KV; 0 ~ 100KV
2.2. After the trip, the voltage regulator automatically returns to zero;
2.3, zero position closing, with automatic and manual lifting voltage;
2.4, imported leakage protector, reliable protection of personal safety;
2.5, over-current protection, threshold and other security protection functions;
2.6, voltage, current display, measurement accuracy ± 2%, breakdown voltage maintenance;
2.7, test electrode:
2.7.1 Sheet material electrode (A\B)
A, the upper electrode diameter is 25mm, the height is 25mm; the lower electrode diameter is 25mm, the height is 25mm. (The electrode material can be customized, the default is stainless steel);
B, the upper electrode diameter is 25mm, the height is 25mm; the lower electrode diameter is 25mm, the height is 75mm. (The electrode material can be customized, the default is stainless steel);
2.7.2 Thin film material electrode (C)
C, the upper electrode diameter is 6mm, the height is 110mm; the lower electrode diameter is 6mm, the height is 10mm. (The electrode material can be customized, the default is stainless steel);
2.8, rated capacity of high voltage transformer: 10KVA; 20KVA
2.9, rated input / output voltage: 220V / 30KV; 220V / 50KV; 380V / 100KV;
2.10, rated input / output current: 30A / 0.3A; 20A / 0.09A; 20A / 0.09A;
2.11. Control system: It adopts upper computer interface software or touch screen control, precise control, simple operation, complete humanization design, automatic calculation of electrical strength and report generation at the end of the test, panel thermal printer can print test results in time;
The boosting speed is five-speed optional (or arbitrarily set): 5V, 50V, 100V, 500V, 1000, 2000V;
2.12, oil bath with convenient disassembly and assembly (material: stainless steel: this can be according to customer requirements, or not oil bath);
2.13. Instrument components: consisting of electric contact type voltage regulator, control box, protection resistor, electrode box and oil bath;
2.14, chassis material: high quality SUS304 stainless steel or baking finish;
2.15, dimensions: length 1.2 meters, width 0.9 meters, height 1.6 meters
2.16, weight: about 240KG
