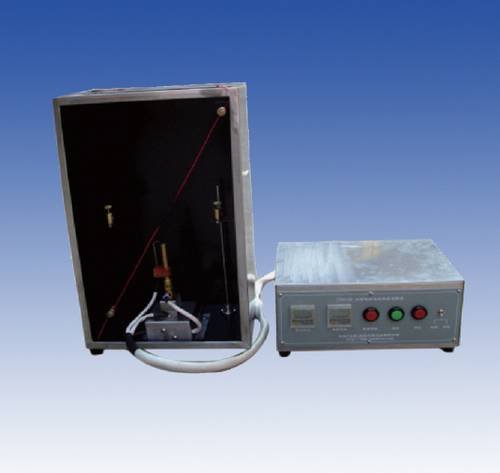

KP8091 aviation cable tester
According to the national military standard GJB17.18-84 < > aviation cable test method for combustion test standard.
Conform to the standard: GJB17.18, MIL - W - 5186 - c, 5186 d, 81381 a, ISOR1220, 1491 test standard.
Fixed on both ends of the specimen is vertically placed on three sides is a metal sheet metal cover. Torch lit, make the blue from the tip of the cone in the sample the bottom 20 mm, in contact with the sample surface. And into horizontal or into 60 ° inclined plane of the sample.
1, metal cover: 600 mm, width 360 mm, 250 mm deep, positive and open at the top, the bottom is closed.
2, burning lamp: standard propane gas burning lamps. Outer flame is 175 mm, inner flame is 55 mm
3, set the burning time reaches the preset time, the machine will automatically stop the ignition.
4, automatic ignition for high-voltage fire.
5, fuel, gas, methane () by advertisers
6, provided by the customer and installation of the fume hood
