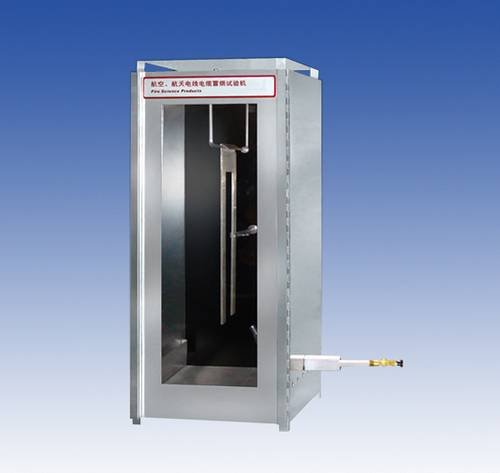

KP8090 Aviation, aerospace, electric wire electric cable smoke testing machine
1, scope of application:
Suitable for measuring the aviation, aerospace, electric wire electric cable under the specified temperature effect, whether to emit visible smoke.
Second, conform to the standard:
GJB17.17-1984 standard requirements.
Three, the main parameters:
Instrument size:
Test unit: W300 L3500 * * H300 (mm)
Electric cabinet: W300 L400 * * H300 (mm)
Test unit and the control box adopts CNC machine processing molding, circular modelling beautiful generous. A3 cold plate spraying quality. Test apparatus is equipped with 3 m long ahead organic glass Windows, the device internal spray matte black paint, can better see test results.
Test current: 300 a dc current.
Sample required:
Sample length length is 4 m, measured the size is 3 m.
Test method:
Display on the electric cabinet, resistance and temperature values, through the calculation formula, can accurately calculate the resistance value of sample. (see instructions)
Working voltage: AC220V / 50 hz.
