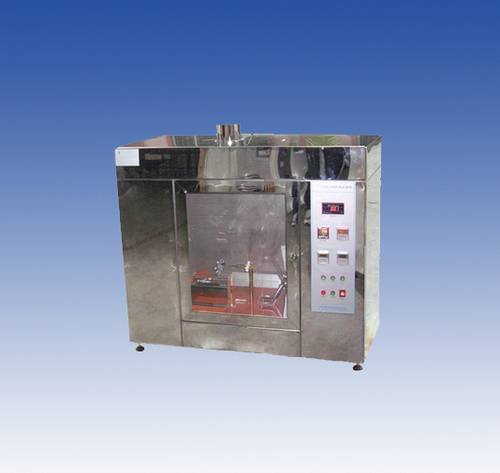

KP8031 needle flame test machine
Summary:
In the product due to fault conditions, such as fault current flows through the leak path, overheating of components or parts, such as bad contact circumstance may cause fire, it may be shot to the near parts, needle flame test is to simulate the product inside under the condition of fault generated by the small flame, use simulation technology to evaluate the fire risk. For small parts (or components) or horizontal glow wire test - vertical burning test method is not fit, can reference the needle flame test methods. If the sample test in light-off, glow wire test is produced by burning dangerous situation also need needle flame test. Needle flame test instrument applies to electrical and electronic products, household appliances, components, parts and components, etc., such as patch panel, the centrifugal switch, electric rice cooker outlet...
Conform to the standards: GB/T5169.5, IEC60695-2-2
Equipment parameters:
A, the burner: long 35 mm, inside diameter: 0.5 mm.
Second, fire standards: flame height is 12 mm
Three, temperature measuring device: 1, for armoured thermocouple type Ф 0.5 mmK filaments, measuring temperature: 1050 ℃, the heat transfer of copper block: Ф x6.0 4.0 mm
Four, heating speed: 100 ~ 700 ℃ for 23.5 S
Five, the test chamber volume: 0.5 M3, deep x width x height: 95 x 90 x 60 cm
Six, shape dimension: deep x width x height: 61 x 120 x 105 cm
Seven, carton material: electrostatic painting and mirror stainless steel. According to customer requirements and business conditions and the selected my briefcase
