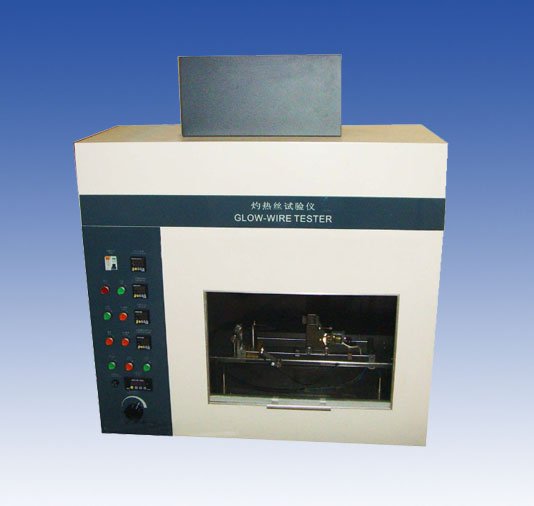

KP8030 glow wire tester
Summary:
Electrical components or parts under the condition of fault or overload, may reach too high temperature or near light them parts. Glow wire test is to simulate the hot components or overload resistance of heat or ignition source such as caused by the thermal stress in a short time, and use simulation technology to evaluate the fire risk. Glow wire tester is applicable to electrical and electronic products, household appliances parts used plastic non-metallic insulation materials and parts, such as: switch shell, relays, sockets...
Accord with a standard GB4706.1, L1694, GB /, IEC60695 T5169.5-1997-2-2, GB2099
Main parameters:
1. The test gas source: use bottled butane gas, propane gas can be used
2. The needle burner: stainless steel
3. Burner needles: inner diameter was 0.5 + / - 0.1 ¢, outside diameter is less than
4. The glow wire: 4 mm + / - 0.04 mm Ni80 / Cr20
5. The temperature error: 500 ~ 700 ℃ plus or minus 10 ℃; 750 ~ 1000 ℃ + 15 ℃
6. Thermocouples: lateral temperature using 0.5 ~ ~ 0.55 mm nickel chrome armoured thermocouple type (K) imports
7. Try the glow wire test pressure; Hot wire to exert force 0.8 N 0.8 N samples
Depth: 8. Pressure limit pressure at least 7 mm depth
9. Try moving speed: 10 to 25 mm/s
Applying time 10. 0-99. 99 range is adjustable.
11. Size: 1120 * 520 * 1250 mm
