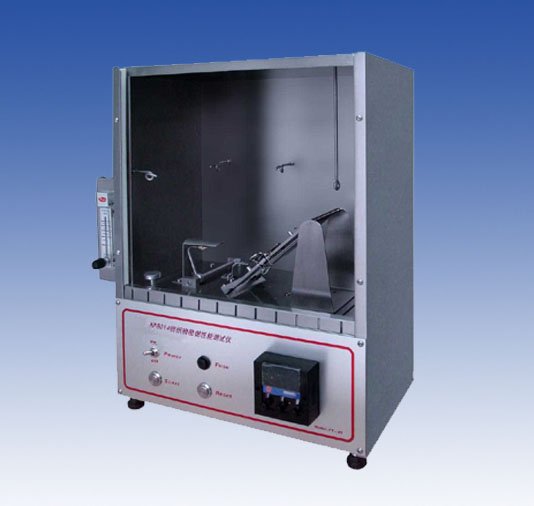

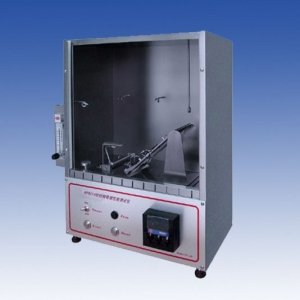

KP8014 fabric flame retardant performance tester is 45 degrees
1. Scope of application:
Applicable to the resistance but woven fabric, knitted fabric, coating products, laminated products, and flame retardant properties such as curtains and curtain.
2. Standard:
GB/T5455 textile vertical combustion performance test method, ISO 6940, the textile fabric. The combustion performance. Ease of ignition of the sample is vertical ", ISO 6941, the textile fabric. The combustion performance. The determination of vertical orientation try flame creeping ", EN 1101, the textile and textile products. The combustion characteristic of curtains and curtain. Vertical flammability collocating (small flame) test program, EN 1102, the textile and textile products. The combustion performance. Curtains. Flame vertical burning test program, EN 1103, the textile clothing fabrics. Determination of combustion performance program ".
1. The main parameters:
L test power supply: 220 v + 10% / 50 hz;
L combustion air supply: industrial use propane and butane gas; () by advertisers
L sample clamp: W89 L422 * * H2 (mm);
L sample: (L300 * W80) mm, meridional and zonal 5 block;
L combustion burner: 11 mm diameter ￠, pipe head and vertical into 25 ° Angle;
L the flame height: 40 + / - 2 mm;
L: gas pressure of 17.2 kPa and 1.7 kPa;
L combustion meter: 99.99 H/min/s set arbitrary;
L secondary meter: 99.99 H/min/s set arbitrary;
L smoldering meter: 99.99 H/min/s set arbitrary;
L ignition Angle of axis and the sample surface: 0 ° ~ 90 ° is adjustable;
L heavy hammer (54.5, 113.4, 226.8, 113.4, 226.8 g, each one;
L ignition system: high voltage electronic ignition;
2. The equipment structure:
L the machine one-piece structure, the control panel is located in the right side of the instrument;
Combustion box size: l W329 L329 * * H767 (mm), equally arranged 6 12.5 mm at the bottom of the air inlet
L case material: combustion box body is made of high quality 304 not steel plate (t = 1.2 mm), CNC machine processing molding, circular modelling beautiful generous.
L a blowtorch: made by my company, brass material, fully in line with the GB/T5455 standard requirements.
L materials using 304 stainless steel or other mechanical parts A3 material thickening plating, anticorrosion.
