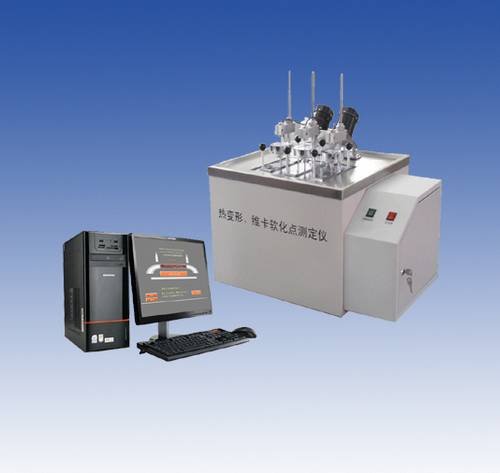

KP8006 thermal deformation vicat softening point temperature tester
Conform to the standard:
GB/T 8802-8802 "thermoplastic pipes, pipe fittings of the vicat softening temperature measurement"
ISO75 - "93" plastics - determination of the load deformation temperature,
ISO306:1994 "plastics - thermoplastics vicat softening point measurement of temperature,
GB/T1633-2000 "thermoplastic vicat softening point measurement of temperature,
GB/T1634-2001 measurement of plastic deformation temperature - load
Mainly used for polymer materials (such as plastic, rubber, nylon, electrical insulating materials, etc.) of the heat distortion temperature and vicat softening point measurement. Widely used in plastic chemical enterprises and research institutions.
Second, main technical parameters and its accuracy:
1, the range of temperature control: at room temperature to 300 ℃
2, temperature measurement accuracy: + / - 0.5 ℃
3, uniform heating rate:
A speed: 5 plus or minus 0.5 ℃ / 6 min
B. speed: 12 + / - 1.0 6 ℃ / min
4, deformation measurement range: 0 ~ 1 mm deformation resolution: 0.005 mm
5, high precision digital display micrometer precision: + / - 0.003 mm
6, deformation accuracy: + / - 0.005 mm
7, the softening point (d) maximum load test: GA = 10 N + / - 0.2 N; 50 GB = n + 1 for n
8, maximum heating power: 4 kw
9, power, frequency, maximum current: 220 v, 50 hz 30 a
10, span - 64 mm, 100 mm or continuous adjustable
11, sample can be placed horizontally or side.
Three, precision grades: grade 1
Four, the main function: this machine adopts the advanced microelectronics and computer control technology, make the product has the advantage that the test process automation and sequencing. At the same time, also to realize several keyboard input, data processing, the CRT color curve shows that a large capacity of data storage and drawings and report printing function. This machine adopts the unique computer program litre cooling at a constant speed control system, the technology has successfully made the PTC test program for zhejiang university uniform cooling system. In testing process, in order to prevent too much oil or large expansion coefficient of thermal expansion of oil spill, the machine, equipped with the spilled oil recovery unit. Cooling method: natural cooling, water cooling. Has the limit temperature protection function has the function of automatic lifting test frame (optional) the heating medium: silicone fluid.
Five, the basic configuration:
1, host a
2, high precision deformation table: four
3, two temperature sensors
4, the thermal deformation and vicat probe: four
5, a microprocessor control section
6, a special test software
7, the test frame: four
8, : (the following is a set of weights, each test a set)
1 2 1 g, 2 g 5 g 2 10 g 1 20 2 50 g 1 g 100 g 1
Two 500 g, 200 g 1 g 900 1 1 kg 2 2 kg 1
9, a set of brand computer
