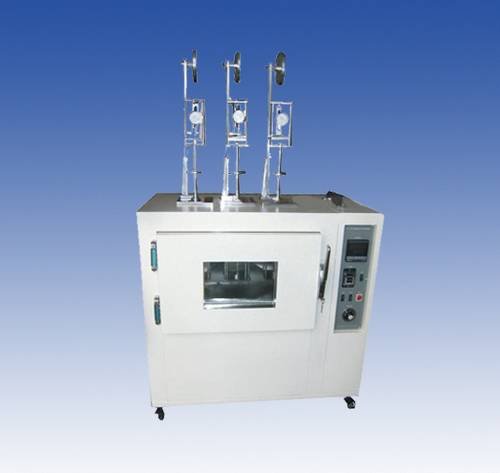

KP8005 electric wire electric cable heating deformation testing machine
This machine is used to test the plastic and wire materials such as leather, thermal deformation of the particular temperature, place the specimen in the testing machine free after 30 minutes, and then sandwiched between parallel plates of the unit, and of the load, and temperature again placed in 30 minutes, with a scale for measuring its thickness difference of before and after heating, the thickness difference divided by the thickness before heating, as a percentage, is the deformation rate. Fully comply with JIS - C - 3005 test standard
According to the standard
GB 2099.1 2008 household and similar use plug socket part 1: general requirements
UL wires and soft lines, 1581-2009
JIS C 3005-2000 rubber or plastic insulated wire and cable test methods
1, test unit: 3 groups
2. Temperature: room temperature to 300 ℃
3, Jordan farmar, 50, 100, 200, 500, 1000 g each three
4, scale: Japan MITOTOYO0.01/10 mm
5, volume:
Inner carton size: 600 mm * 400 mm * 360 mm high
Carton size: 1100 mm * 620 mm 620 mm wide
6, in case material: SUS# 304 stainless steel.
7, carton material: 1.5 mm steel plate, using electrostatic paint
8, heat preservation material: high density of asbestos
9, weight: 113 kg
