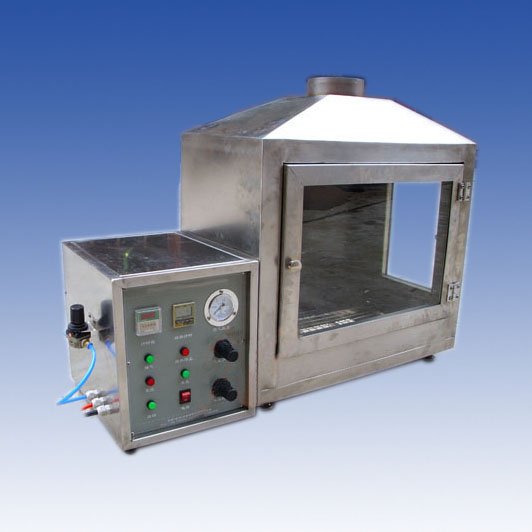

KP8002 building materials flammability tester
Instrument is introduced
Conform to GB/T8626, ISO11925 "construction materials flammability test method", under the condition of no plus radiation, use small fire directly impact vertically sample for determination of flammability of building products.
The tester USES Germany Kleinbrenner (klein Mr. Bollen) principle, in the vertical direction of the little flame directly impact, determination of the combustion performance of building materials.
Is suitable for the construction materials testing of category B, C, D, E, Bfl, CFLS, Dfl and Efl, the device provides the overall solution, is advantageous for the operation personnel use.
standard
EN ISO 11925-2;
DIN 53438;
DIN4102-1;
GB/T 8626 standard.
Characteristics of the
All stainless steel structure housing;
Two toughened glass door for observation test;
Stainless steel specimen holder and sample template;
A source can be vertical or 45 degrees;
Flame height regulation through the rotor flow meter;
Flame measuring device;
Specimen holder can be moved around and up and down;
Equipped with two stainless steel sample holder.
specifications
A, burning cases:
1, the overall size: 700 * 400 * 400 mm wide
2, material: mirror stainless steel
3, for natural air vents in the bottom vent is composed of rectangular box body,
Open area: 25 * 25 mm, and height: 50 mm
Flame burner: 45 ° Angle, height: 20 mm
Three, gas: the purity is more than 95% of the commercial propane, customer should bring along their own
Four, the sample holder: two u-shaped stainless steel frame, 15 mm wide, 5.0 mm thick
