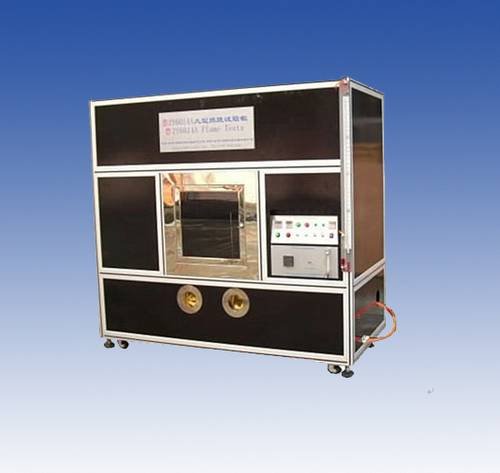

Large burning tank KP8001 VW - 1
This large burning tank is strictly according to UL1581 sect 1080.1 ~ 1080.14 standard production, fully in line with the VW - 1 (V - ertical - specimen) Flame Test fire Test standards. The whole test laboratory in a volume of 4.32 cubic meters of seal.
Test method: adjust good flame height, puts the top flame specimens, the combustion for 15 seconds, put out in 15 seconds, repeat 5 times after the test coupons were burning, burning can be set, the put out time and repeat times, and can automatic operation. Applies to UL1581. UL13. UL444. UL1655 VW - 1 and the FT of CSA, FT - 2-1.
A, the combustion chamber
1.1 effective space: 2.4 m (length) * 1 m * 1.8 m (width) (high)
1.2. Appearance size: 2.4 m (length) * 1 m * 2.5 m (width) (high)
1.3 material:
External: a square steel frame structure, thickness 1.5 mm steel plate electrostatic roast dark green paint,
B. internal: electrostatic baked black paint.
1.4. Observation window:
A push-pull type window around two
B. observation Windows for tempered glass;
C. use SUS304 stainless steel package around the edge;
D, size: 730 mm * 420 mm (high) (wide).
1.5. The operating window: 4
A. inside empty size: ф 150 mm;
B: outer for 3.0 mm stainless steel package edge;
C. seal for leather gloves, long arm length: 600 mm;
D. total outside dimensions: ф 220 mm.
1.6. Exhaust system:
A spiral fan for two;
B push-pull sealing plate for 2.0 mm stainless steel;
C has a sliding groove on both sides;
D is a set of remote control device:
D1. Using two steel pulling cable
D2. The pulley in the two groups
1.7. Width: 4
A size: ф 160 mm;
B push-pull sealing plate is 2.0 mm stainless steel plate;
C has a sliding groove on both sides.
1.8. At the bottom of the fixed frame:
A size: (length) 2.4 m * 1 m * 0.7 m (width) (high);
B by 60 mm * 60 mm * 4 mm Angle, electrostatic roast dark green paint,
C foot roller: four of six which lock pulley.
1.9. Lighting equipment: prevent mist smoke a circular lamp
Second, the control part
2.1. 1 burning instructions
2.2. The combustion setting: 0-99.99 seconds set arbitrary
2.3. 1 stop burning instructions
2.4 stop burning set: 0-99.99 seconds set arbitrary
2.5. The combustion count: 0-999999 set arbitrary
2.6 has a fully automatic, burning, burning, counting function
2.7. With vertical/horizontal transformation function
2.8 with automatic ignition function
2.9. With manual/automatic conversion function
2.10. For high voltage spark ignition
2.11. Test part and the control connection, adopt the aviation plug, very close contact
3, test section
3.1. The nozzle: 1. Angle of 20 degrees
3.2. 1 inner flame regulator
3.3. 1 outer flame regulator
3.4. Marking feet 1 inner flame contact
3.5. Low flag labeled 'one
3.6. The test length '1
3.7 amount of flame sensor 1
3.8. Test the fixed frame: a. material: steel plate after the lacquer that bake b. after fine processing color: black
3.9. Test box of SUS304 stainless steel after fine processing and into
3.10. Test at the bottom of the frame:
A. two piece of 2.0 mm steel plate
B. size: 700 mm (length) x 450 mm (width)
C. Color: for electrostatic baked black paint
3.11 independent vertical and horizontal test design
3.12. Test box of the extended arm putter
3.13. Horizontal burning marks for three
Four, source control:
4.1. Gas: bring your own, it is recommended that the use of methane
4.2 meter: 1 (Dwyer VA20430 type)
4.3. U tube manometer: 1 (1230-36 Dwyer companies in the United States)
4.4. Gas, a tee joint
4.5. The trachea: for high pressure air passages
