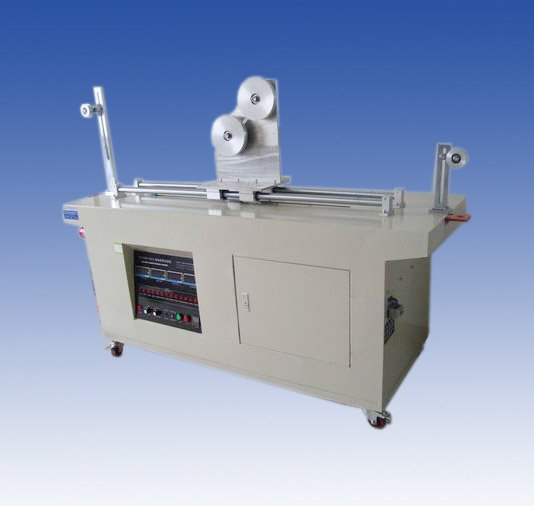

KP8255 two rounds of wire torsion testing machine
The equipment is in line with national GB5023.2 and GB5013.2 standards.
Two rounds of wire qu torsion testing machine applicable scope: is suitable for the detection of rubber and plastic insulated and sheathed flexible cable under the dynamic load curve bending test and detected in the test the following cable failures and downtime:
1) open circuit conductor
2) short circuit between conductors
3) cable short circuit between sample and pulley
Features: with wire instructions, directions and short circuit, wire core and shell short circuit function
Qu torsion mode: two pulleys, three pulleys are optional
Qu torsion speed: 0.33 m/s
Two pulleys ≧ movement distance of 1 m
Test current 0 ~ 35 a
The test voltage is AC220V / 380 v, single phase AC 50 hz two core: 0 ~ 250 v three-phase AC (adjustable)/three core: 0 ~ 450 v (adjustable) 50 hz
Test line can detect single-phase, three-phase three-wire, three phase four wire
Weight of 0.5, 1.0, 2.0, 3.0, 7.0 Kg, 10 Kg
Pulley structure of the car for two or three optional pulley structure
Block 120, 160, 200 mm in diameter, suitable for the wire diameter of 35 mm round wire and flat wire of 120 mm.
Adopt PLC + touch screen
