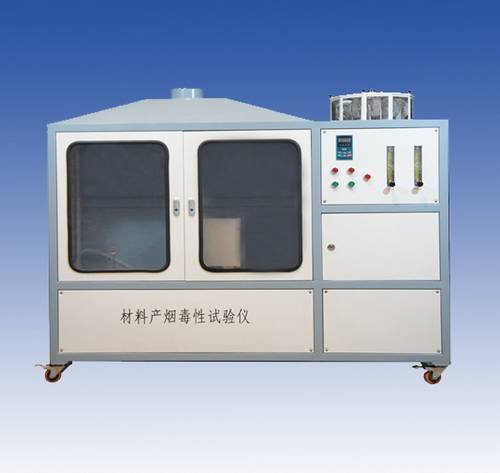

KP8101 materials to produce danger smoke toxicity grading machine (cage)
Smoke toxicity test instrument box body heated by a certain time after the release harmful gases after the reaction of mice to test. This test mainly according to related standards and use within the building materials and building structure fire tests.
standard
GB/T 20285-2006
• DIN 53436
• JIS A1321
Characteristics of the
Appearance, advanced industrial control and design;
Safe and reliable, high degree of automation, test process, the operation is convenient;
• circular electric furnace heating, the use of temperature up to 1000 ° C;
• programmable controller (PLC) control:
PLC + solid state relay to realize PID control heating, the temperature error of plus or minus within 2 °;
New built-in heating furnace temperature, temperature correction and normal test three models;
PLC control ring furnace movement back and forth;
• desktop computer control:
Temperature parameter setting and display; Perform manual control accordingly.
The experimental data acquisition and preservation;
Mouse movement status screen monitoring, real-time temperature curve display;
Historical curve and the data query, print;
Accidents, a voice alarm and alarm display function.
specifications
Size 2400 (W) x 500 (D) x 1600 mm (H)
Power AC 220 v, 50/60 hz, 15 a
Weight 250 kg
Instructions provided
Exhaust 70 L/s
Propane gas tools, personal computer, a vacuum cleaner
