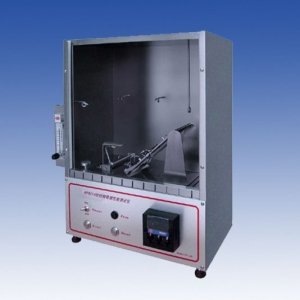

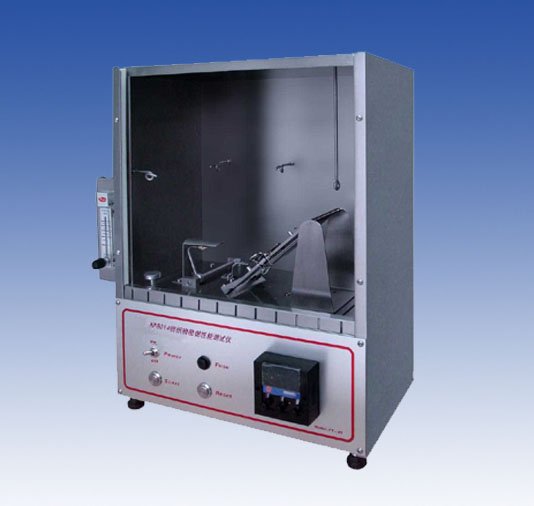

KP8093 Single cable lean combustion testing machine
Product introduction:
According to ISO6722-2006, GB12666.4 test standard production. Fixed on both ends of the specimen is vertically placed on three sides is a metal sheet metal cover. Torch lit, make the blue inside the tip of the cone in the 50 mm away from the sample bottom, in contact with the sample surface. With 45 ° inclined plane of the sample.
Standard:
GB12666.4
ISO6722-2006
QC/T 730-2205
Technical parameters:
1.1 metal cover: electric cabinet and the metal cover, material of SUS304 stainless steel.
1.2 combustion burner: the import of American hamburger using combustion tube diameter of 9 mm, flame height is 100 mm, inside the blue flame cone length is 50 mm.
1.3 set the burning time reaches the preset time, the machine will automatically stop.
1.4 fire ignition for automatic packing.
1.5 traffic agent: 0.1 L ~ 1 L/min
Second, the specification:
2.1 appearance size: 1000 mm (W) x600 (D) mmx1000 (H)
2.2 power supply: AC220V 50/60 hz 1 a
2.3 source: propane or natural gas () by advertisers
