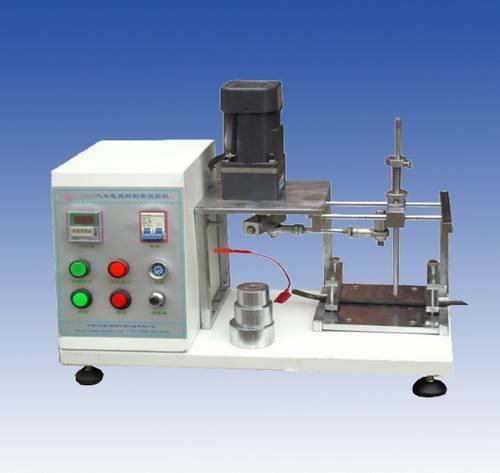

KP8060 auto cable scratch-resistant testing machine
This experiment device suitable for standard
The JASO D611-94 motor vehicle with low voltage wire and cable test standard ",
The JBT 8193 highway automotive low voltage wire and cable standards,
"TBT 1484.1-2001 railway rolling stock cables - rated voltage up to and including 3 kv cable",
"DIN72551-5/1991 road vehicles - low voltage cable - single core, not blocked, thin-walled, polyvinyl chloride (PVC) insulated - test requirements,
"JIS C 3046 / SAEJ1128-2005 wire and cable mechanical physical performance test method, extrusion coat scratch-resistant grinding experiment",
The QC/T - 730-2005 - car with thin wall insulation of low voltage wire ", "ISO6722-2006 standard" international automobile wire
Main parameters:
1, the two-way movement along the axis wire grinding device, a head trip 10 ~ 20 mm
2, scraping needle and scraper:
A, scraping needle (QC/T 730 standard) : 0.45 mm in diameter, material conform to the requirements of the GB/T4358
B, scraper (ISO6722, JB/T8139, JASO D 611, DIN72551 \ VW60306) scraper for R0.125 mm
3, scraping the ground speed: 50 ~ 60 times/min (a moving back and forth for a) is adjustable
4, blow grind count: 1 ~ 9999 times set arbitrary
5, shaving, grinding force Jordan farmar (configuration) : 500, 750 g1 and g2 750 g1)
400 g, 300 g, 600 g, 700 g, 800 g, 900 g, 1100 g each one
6, sample length: 750 mm on the specimen on a steel strand mat
7, motor: 1/2 HP Taiwan motor
8, transmission mechanism, as the ball bearing guide rail
9, the control part: by counting, start, stop, speed control and power switch function.
10, control box for electrostatic painting
11, the transmission mechanism for finishing after plating
12, aggravating way: by Jordan farmar
13, power supply: : AC220V50Hz
14, with functions: resistance to ground test equipment includes one for shave grinding on the surface of the insulation device, when scraping needle worn through contact with the conductor insulation, device will alarm stop
