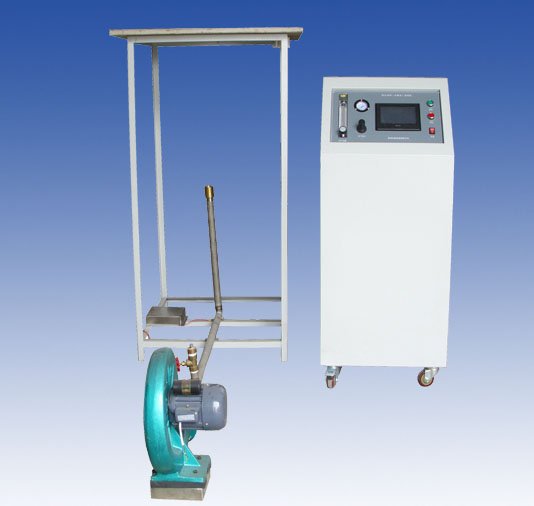

KP8043 fire-retardant coating tester (large plate method)
Conform to the standard: GB12441-2005 (appendix A)
Under prescribed conditions, the test coating on combustible veneer on the surface of the base material type flame retardant properties of fire retardant coating test method, also is suitable for the determination of veneer type fire resistant time of fire retardant coating.
Technical indicators
1. Application to heat up, automatic control, automatic recording, automatic printing graph
2. Gas supply (16 + / - 0.4 L/min
3. The flammable gas source: liquefied petroleum gas or natural gas
4. The back fire (220 + 2) ℃ temperature is reached when the automatic alarm
5. The little flame pilot burner ignition, safe and reliable thermocouple: precision is not lower than Ⅱ, K index, the outer diameter is not more than 3 mm of armoured thermocouple
6. Temperature programmed time: 60 min, the highest temperature 925 ℃ allowed deviation plus or minus 5%
