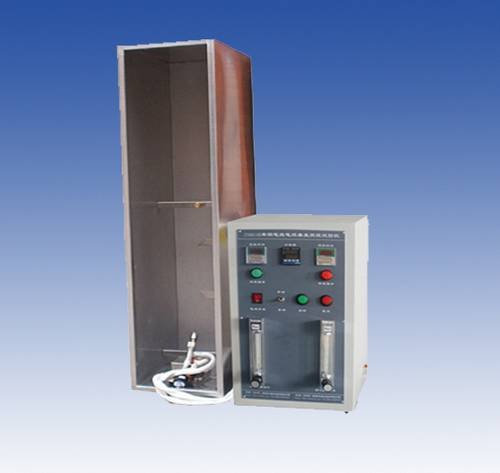

KP8026A single wire cable vertical burning test machine (with no fume hood)
1, scope of application:
Applies to provisions of fire under the condition of single cable or optical cable fire vertical slow delay test
Second, conform to the standard;
In line with the GB/T18380.11-2008, GB/T18380.12-2008, GB/T18380.13-2008, IEC60332-1-1 - "04 04, IEC60332-1, IEC60332-1-04
Conform to GB/T18380.21-2008, GB /, IEC60332 T18380.22-2008-2-1:4, IEC60332-2 - "04
One, the main parameters:
1, the metal cover: height of 1200 mm, 300 mm wide, 450 mm deep, open the front and the top and bottom seal.
2, the torch:
2.1, GB/T18380.11-2008, GB/T18380.12-2008, GB/T18380.13-2008, IEC60332-1-1 - "04 04, IEC60332-1, 1-04 his IEC60332 - USES the nominal power is 1 kw of the burner. Accord with standard of GB/T5169-14.
2.2, GB/T18380.21-2008, GB /, IEC60332 T18380.22-2008-2-1:4, IEC60332-2 - "4 USES the propane burner type (diffusion flame).
3, set the burning time reaches the preset time, the machine will automatically stop the ignition.
4, automatic ignition for high-voltage fire.
5, fuel, gas, methane () by advertisers
6, air flow meter: 10 l/min, a gas flow meter 650 ml/min
7, a temperature measuring device
