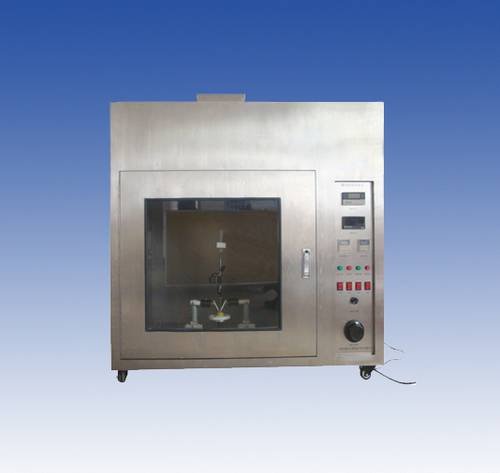

KP8029 electric mark index tester
Instrument adopts rectangular platinum electrode, the force of specimen were 1.0 between N + / - 0.05 n. imposed in 100 ~ 600 v voltage is adjustable between (48 ~ 60 hz), short circuit current at 1.0 + / - 0.1 A when voltage drop should be no more than 10%, when the test circuit, short circuit when the leakage current is equal to or greater than 0.5 time keep 2 seconds, the relay operation, cut off the current, the sample (s) indicating is unqualified. Time constant drip device is adjustable, accurate control fluid volume size 44 ~ 50 drops/cm3 and drops the time interval of 30 + / - 5 seconds.
Conform to the standards: GB/T4207.
A, electrode: two cross-sectional area is 2 mm x 5 mm rectangular platinum electrode. Side edge to 30 ° incline.
Second, the surface forces: 1.0 + / - 0.05 N
3, test voltage, voltage: 100 ~ 600 v
Four, the biggest test current: 3 a
Five, two electrode distance: 4.0 mm
Six, drip device: drip time interval can be set freely
Seven, the test chamber volume: 0.5 M3, deep x width x height: 95 x 90 x 60 cm
Eight, shape dimension: deep x width x height: 61 x 120 x 105 cm
Nine, carton material: electrostatic painting and mirror stainless steel. According to customer requirements and business conditions and the selected my briefcase
