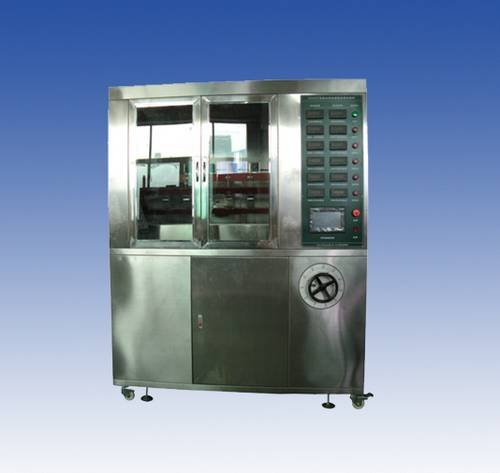

KP8047 high voltage tracking testing machine
Real Video:IEC60587 AC and DC High-voltage Proof tracking tester
A, use
High pressure tracking tester applies to electrical and electronic products, household electrical appliances and materials of electrical resistance trace and erosion test, simulation in power frequency (48 hz - 62 hz), with liquid pollutants and cant test specimen, by measuring electrical mark and erosion resistance rating under harsh environmental conditions using the electrical insulation of electric resistance and erosion grade. This machine is in strict accordance with the GB/T6553-2003 and IEC60587-2003 designed and manufactured.
Second, the performance indicators
1, the electrode: 0.5 mm thick material: stainless steel;
2, top and bottom electrode distance: 50.0 + / - 0.1 mm;
3, test voltage: 100 v - 6000 - v stepless adjustable;
4, voltage regulator: output: 0 ~ 250 v can be adjustable, 5 kva capacity;
5, test transformer: 5 kva capacity, the highest output voltage AC6000V (or DC6000V optional);
6, high precision voltage regulator: AC220V power output of 6000 w, plus or minus 1% accuracy;
7, the loop current is 60 ma, cut off voltage output;
8, test time: 6 hours;
9, drip accuracy: 0.2%;
10, voltage stability: + / - 1%;
11, the mark:
In accordance with standard GB/T6553-2003/4.1.2, the applied voltage on the sample (2.5 k V, 3. 5 k k V and 4.5 V), and pollution drops at a certain velocity, under 60 ma current lasts 6 h but flow is through;
12, drip device:
By trevor precision peristaltic pump, flow range 0.00185 ~ 20 ml/min, the work speed 0.1 ~ 50 RPM, flow accuracy error: < 0.2%;
13, the output voltage, ac/dc switch (can)
14, the experimental group number: groups of five
15, control device: Siemens PLC + Taiwan wei lun touch-screen control, control precision, simple operation, fully humanized design, test end automatically generating reports, panel thermal printer can print test results;
15, studio volume: 900 900 900 l * w * h (mm); Volume of 0.56 m3.
16, case: use SUS304 stainless steel (wire drawing surface);
17, sewage tank adopts 316 stainless steel, equipped with sealing device.
18, instrument appearance, size: 1300 1300 1300 l * w * h (mm)
19, weight: 200 kg
